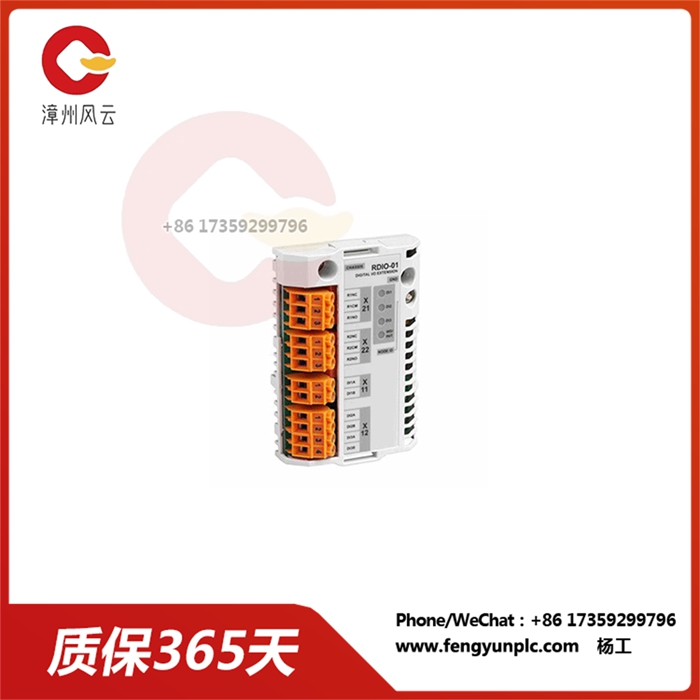

RDIO-01 Digital volume I/O expansion modules from ABB’s ACS800 and DCS800ABB drive families. It acts as an interface between the drive and external devices, enabling the drive to receive and process digital input and output signals from a variety of sources.

Main features:

Flexible input/output configuration: The RDIO-01 module offers 3 configurable digital inputs and 2 configurable relay outputs for flexible adaptation to various application requirements.

Wide voltage input range: Each digital input supports a wide voltage input range of 24-250 VDC or 110-230 VAC to accommodate a variety of signal sources.

Optional logic level: The digital input can be configured to positive or negative logic, ensuring compatibility with different signal conventions.

High-speed data acquisition: The module supports high-speed data acquisition and is able to process digital input signals in a timely manner, ensuring accurate and responsive control.

Optical isolation: The RDIO-01 module integrates optical isolation between the digital input and the driver’s internal circuit. Protect the drive from electrical noise and transients.

Applications:

External control signals: The RDIO-01 module can be used to receive external control signals from buttons, switches, sensors or other digital devices, enabling the drive to respond to external commands and events.

Interlocking and safety systems: This module can be integrated into interlocking and safety systems to prevent dangerous situations, such as starting a motor when the machine is not in a safe position.

Fault detection and indication: Digital inputs can be used to monitor external fault conditions, such as overcurrent or overheating, and trigger appropriate alarm or shutdown procedures.

Process control and sequencing: The RDIO-01 module can be used for process control applications to sequence different stages of a process based on external signals or internal drive parameters.

Remote monitoring: Digital outputs can be used to control external devices, such as indicators or relays, providing remote monitoring capabilities.

Advantages of using the RDIO-01 Digital Volume I/O expansion module:

Enhanced control flexibility: The module’s flexible input/output configuration and wide voltage input range extend the driver’s control capabilities, allowing integration with a variety of external devices and signal sources.

Improved system security: Optical isolation and configurable logic levels help improve system security by protecting the driver from electrical noise and ensuring compatibility with different signal conventions.

Simplified system integration: The RDIO-01 module simplifies system integration by providing a standardized interface for connecting external digital signals to the driver.

Cost-effective expansion: This module provides a cost-effective solution for expanding the drive’s I/O capabilities, enabling additional control and monitoring functions without the need for a separate controller.

Seamless integration with ACS800 and DCS800 drives: This module is designed for seamless integration with ACS800 and DCS800 drives, ensuring compatibility and simplifying programming.
