PXIe-2524 PXI multiplexer switch module

PXIe-2524 PXI multiplexer switch module

The PXIe-2524 (Part number: 780587-24) is a high density multiplexer switching module from National Instruments that delivers 2 amps of input switching current.

The NI PXIe-2524 switch module has a maximum switching power of 60 W or 62.5 VA. It is used to route signals in automated test systems. The instrument is also available in a variety of 1-wire multiplexer configurations, such as 16-pack 8×1, 8-channel 16×1, 4-channel 32×1, dual-channel 64×1 and 128×1.

These configuration schemes play an important role in the switching operation of the device. The PXIe-2524 multiplexer switch module utilizes electromechanical relays for these operations.

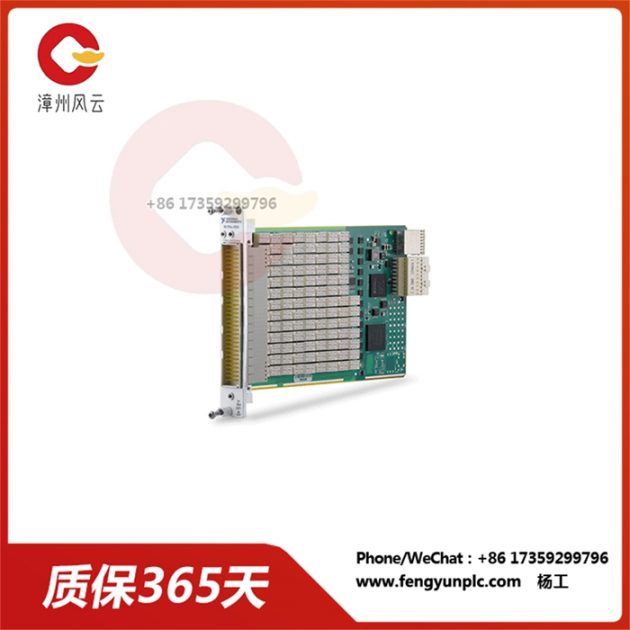

NI-PXIe-2524

The NI PXIe-2524 offers amazing RF performance characteristics. It provides a bandwidth of less than 10 MHz. The DC path resistance of the device is less than 0.8 ohms. The thermoelectric EMF value of the instrument is less than 10 microvolts. The typical relay run time of the instrument is 1 ms, with a maximum of 3.2 ms. The expected life cycle of a mechanical relay is 1 x 108 cycles. The front panel of the NI PXIe-2524 switch module contains various types of connectors, including 160 DIN 41612, 160-bit and male connectors.

The NI PXIe 2524 module enables users to perform measurements quickly. Users can get highly accurate results. The module is portable and weighs about 241 grams. It measures 21.6 x 2 x 13 cm. The power requirements for the PXI Express modules are 24 watts (12 volts) and 3.4 watts (3.3 V).
