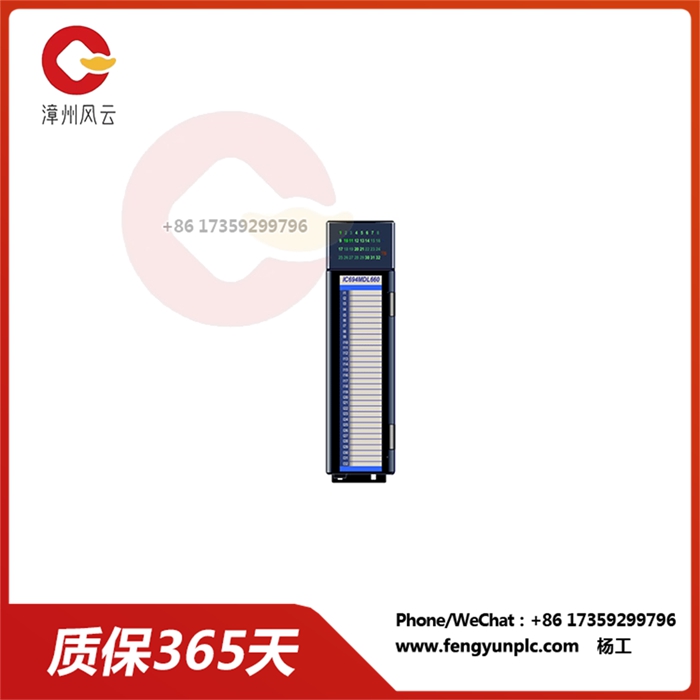

IC694MDL660 Positive/negative logic input module
The IC694MDL660 positive/negative logic input module is the PACSystem RX3i series Programmable Automation Controller (PAC) series GE Automation & Control (now Emerson Automation). It acts as an interface between the field equipment and the PAC, enabling the PAC to receive and process digital input signals from a variety of sources.
Main features:
Positive and negative logic input: This module supports positive and negative logic input signals and is suitable for various field devices and sensor types.
High-speed data acquisition: It provides high-speed data acquisition capabilities, capable of processing up to 16 input signals at scan rates of up to 2. 5 kHz ensures timely processing of critical data.
Optical isolation: This module integrates optical isolation between the input channel and the internal circuit of the PAC to protect the PAC from electrical noise and transients.
Status indicator LED: Each input channel has a corresponding LED indicator that lights up when the signal is active, providing visual status monitoring for easy troubleshooting.
DIN Rail Mounting design: The IC694MDL660 module is designed for DIN rail mounting and is easy to install and integrate in industrial control cabinets.
Applications:
Separate Sensor monitoring: This module is widely used to monitor the status of separate sensors such as buttons, limit switches and proximity sensors, providing valuable information for control and safety applications.
Machine condition monitoring: In the machine control system, the IC694MDL660 module can monitor a variety of machine status, including machine position, speed and fault conditions, so as to achieve real-time machine monitoring and control.
Process control System: For process control applications, this module can monitor process parameters such as temperature, pressure, and flow, providing feedback to control algorithms to maintain optimal process conditions.
Conveyor control System: In the conveyor control system, the module can monitor conveyor status such as belt movement, product presence, and safety interlocking devices to ensure safe and efficient material handling.
Alarm and signaling systems: The IC694MDL660 module can be used in alarm and signaling systems to monitor critical situations and trigger alarms or notifications if necessary.
Benefits of using the IC694MDL660 input module:
Enhanced system reliability: The module’s optical isolation and robust design help improve system reliability by protecting the PAC from electrical noise and ensuring reliable signal transmission.
Improve data acquisition accuracy: high-speed data acquisition functions and dedicated input channels ensure accurate and timely processing of input signals to achieve accurate control and monitoring.
Simplify installation and maintenance: DIN Rail mounting design and status indicator leds facilitate installation, troubleshooting, and module maintenance.
Flexible signal compatibility: The device supports positive and negative logic inputs for flexible connection to various field devices.
Integration with PACSystem RX3i Controller: This module is designed for seamless integration with PACSystem RX3i PAC, ensuring compatibility and simplifying programming.
Precautions for implementing IC694MDL660 module:
Correct system configuration: Ensure correct system configuration, including addressing, scan rate, and input signal characteristics, optimize module performance and prevent collisions.
Input signal conditioning: Consider proper signal conditioning of non-standard or noisy input signals to ensure reliable data acquisition and prevent false readings.
Grounding and wiring practices: Follow proper grounding and wiring practices to minimize electrical noise and ensure signal integrity.
Module protection and cooling: Provide adequate protection against dust, moisture and extreme temperatures, and ensure proper cooling when necessary to maintain the service life of the module.
Maintenance and diagnosis: Implement regular maintenance procedures and utilize diagnostic tools to monitor module health and identify potential problems in a timely manner.
By carefully considering these factors and thoughtfully implementing the IC694MDL660 input module, industrial automation systems can achieve greater reliability, precise data acquisition, simplified maintenance, and flexible signal compatibility, thereby improving system performance, reducing downtime, and improving operational efficiency.
